Cementing Engine 45MPa 300HP Frac Pump Truck

Frac Pump Truck/JYSNC45-21 Type Cementing Truck Maximun Pressure 45MPa

The JYSNC45 - 21 type cementing truck

The preparation, model name

■ product name JYSNC45 - 21

Standard Name: cementing truck

Jane said: cement cementing truck / car

■ enterprise self compiled type

Product type: JYSNC type

JY -- enterprise code (Jianghan JIAYE)

SNC -- cement truck

45 -- a maximum pressure of 45 MPa

The 21 -- 2100 L/MIN maximum output

Three, the main system components technical parameters

3.1, the vehicle chassis

The car has a variety of carrier chassis design, for the user to choose.

3.1.1. Sinotruck Steyr truck chassis (optional)

Shaanxi: SX1256UR464

Engine type: WP10.300E40

Power: 300HP

Axial distance: 4325+1350

3.2, the engine:

Engine type: CCEC KT19-C525

Hour of power (Kw): 391 (2100r/min)

3.3, hydraulic mechanical transmission gear box

Model: BY400

The maximum input torque: 1898N.m

Maximum input speed: 2500r/min

Transmission ratio:

1 file 7.62

2 file 5.57

3 file 4

4 file 2.80

5 file 2.01

6 file 1.39

7 file 1

3.4, horizontal three cylinder single acting piston pump assembly:

Horizontal three cylinder plunger pump is piston is 4 1/2 "TPA600 single acting reciprocating piston pump:

4.1 type: TPA600

4.2 plunger diameter: 114.3mm (4 1/2 ")

4.3 stroke: 152.4mm (6 ")

4.4 the maximum input brake horsepower rated (600HP): 447KW

4.5 water power: 300KW (400HP)

4.6 the maximum pressure: 45Mpa

4.7 maximum capacity: 2.11M ³ /min

4.8 transmission ratio: 4.6:1

4.9 plunger pump performance parameters under various conditions (n=1800r/min)

300HP Frac Pump Truck

45MPa Frac Pump Truck

300HP cement pump truck

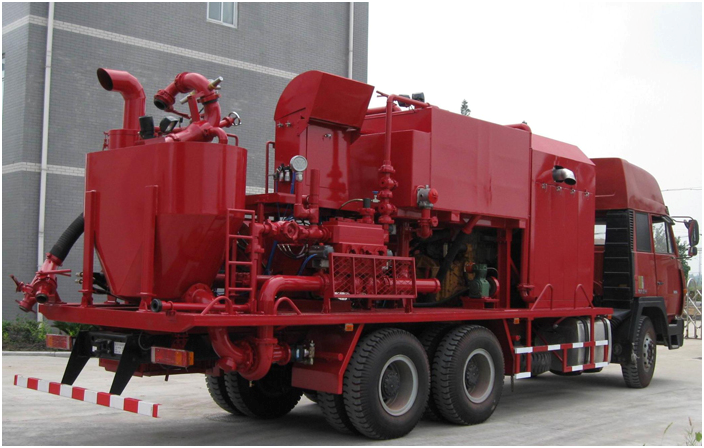

Cementing Engine 45MPa 300HP Frac Pump Truck Images
