Place of Origin : CHINA
MOQ : 1
Payment Terms : L/C,T/T
Supply Ability : 10 PIECES PER MONTH
Delivery Time : 10-15 WORK DAYS
Packaging Details : WOODEN BOX
Total length(mm) : 500
I.D.(mm) : 110-225
O.D.(mm) : 141.3-533.4
Min.Dia.(mm) : 50-77
Oilfield Cementing Tools Floating Collar Float Shoe Min.Dia50-77 (mm) Total length 500 (mm)
Descriptions of Oilfield Cementing Tools Floating Collar Float Shoe Min.Dia50-77 (mm) Total length 500 (mm):
API Standard Oilfield Cementing Tools Floating Collar Float Shoe
Like the FC Float Collar, the FS float shoe also has a back-pressure valve to prevent back flow. It permits cement to run through side ports when the nose of the shoe is on the bottom. Inner valve and bottom guides are all made of drillable material.
Its capability of back-pressure is over 25MPa.
Specifications:
Specification(in) | O.D.(mm) | Total length(mm) | I.D.(mm) | Min.Dia.(mm) | Conn Type | Affordable strength of back-pressure(Mpa) | |
Float Collar | 5 | 141.3 | 500 | 110 | 50 | 5 BCSG | 35 |
5 1/2 | 153.67 | 530 | 112 | 55 | 5 1/2BCSG | 35 | |
7 | 194.46 | 586 | 162.5 | 77 | 7 BCSG | 35 | |
9 5/8 | 270 | 720 | 225 | 77 | 9 5/8 BCSG | 35 | |
13 3/8 | 365 | 720 | 319 | 77 | 133/8 BCSG | 35 | |
20 | 533.4 | 720 | 475 | 77 | 20 BCSG | 35 | |
Float Shoe | 5 | 140.3 | 495 | 110 | 50 | 5 BCSG | 35 |
5 1/2 | 153.67 | 514 | 122 | 55 | 5 1/2 BCSG | 35 | |
7 | 194.46 | 533 | 162.5 | 77 | 7 BCSG | 35 | |
9 5/8 | 269.88 | 550 | 225 | 77 | 9 5/8 BCSG | 35 |
![]() |

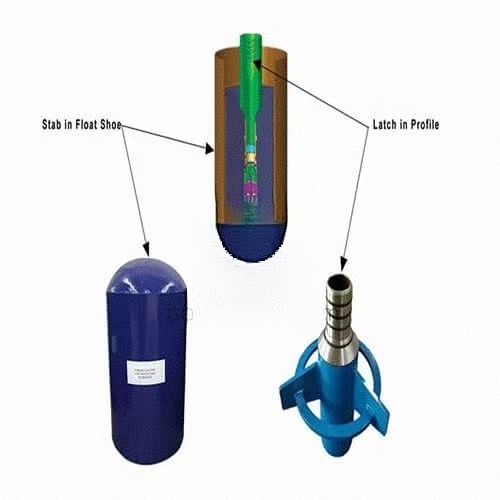

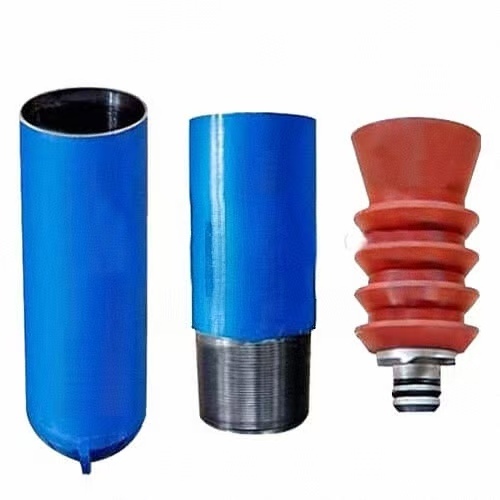

Oilfield Cementing Tools Floating Collar Float Shoe Min.Dia50-77 (mm) Total Length 500 (mm) Images |
