F Type Drilling Triplex Mud Pump Rated Power 500~1600HP Rated Speed 120~165 SPM

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C,T/T

Supply Ability : 10 PIECES PER MONTH

Delivery Time : 10-15 WORK DAYS

Packaging Details : WOODEN BOX

Rated Speed : 120~165 SPM

Max.Liner Dia. : 170/6 3/4

Rated Power : 500~1600HP

Gear Ratio : 4.206:1

Contact Now

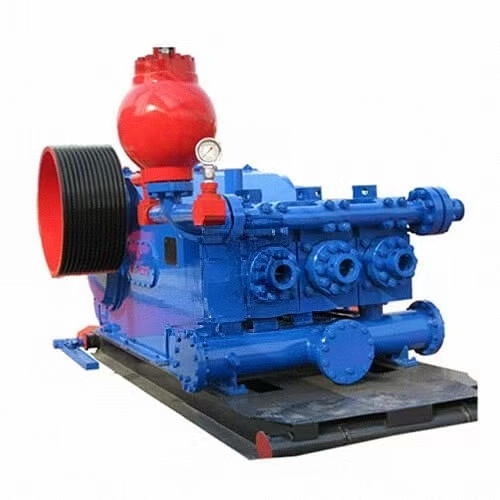

F type drilling triplex Mud Pump Rated Power 500~1600HP Rated Speed 120~165 SPM

Descriptions of F type drilling triplex Mud Pump Rated Power 500~1600HP Rated Speed 120~165 SPM:

In commonly used positive circulation drilling, the surface flushing medium – water, mud, or polymer flushing fluid – is sent directly to the bottom of the drill bit through high-pressure hoses, faucets, and the center hole of the drill string under a certain pressure, in order to cool the drill bit, remove the cut rock cuttings, and transport them to the surface.
The commonly used mud pump is a piston or plunger type, which is driven by a power machine to rotate the
crankshaft of the pump. The crankshaft then drives the piston or plunger through the crosshead to perform a reciprocating motion in the pump cylinder. Under the alternating action of the suction and discharge valves, the purpose of compressing and circulating flushing fluid is achieved.

Specifications:

Model	F-500	F-800	F-1000	F-1300	F-1600
Type	Triplex single acting	Triplex single acting	Triplex single acting	Triplex single acting	Triplex single acting
Rated Power	373kw	596kw	735kw	969kw	1193kw
Rated Power	500HP	800HP	1000HP	1300HP	1600HP
Rated Speed	165 SPM	150 SPM	140 SPM	120 SPM	120 SPM
Stroke(mm/inch)	190/7 1/2	228.6/9	254/10	305/12	305/12
Max.Liner Dia.	170/6 3/4	170/6 3/4	170/6 3/4	180/7	180/7
Gear Type	Herringbone	Herringbone	Herringbone	Herringbone	Herringbone
Valve Pot	API-5	API-6	API-6	API-7	API-7
Gear Ratio	4.286:1	4.185:1	4.207:1	4.206:1	4.206:1
Suction Inlet	203/8	254/10	305/12	305/12	305/12
Discharge Inlet	4Flange	5Flange	5Flange	5Flange	5Flange
Discharge Inlet	5000 psi	5000 psi	5000 psi	5000 psi	5000 psi
Lubrication	Forced&	Forced&	Forced&	Forced&	Forced&
Lubrication	Splash	Splash	Splash	Splash	Splash
Max. Pressure	27.2Mpa	34.5Mpa	34.5Mpa	34.5Mpa	35Mpa
Max. Pressure	3945 psi	5000 psi	5000 psi	5000 psi	5080 psi
Overall Size(in)	14410686	1567966	1638970	17412178	181129106
Weight(kg)	9770	14500	18790	24572	24791
