Place of Origin : CHINA
MOQ : 1
Payment Terms : L/C,T/T
Supply Ability : 10 PIECES PER MONTH
Delivery Time : 10-15 WORK DAYS
Packaging Details : WOODEN BOX
API PS 175 Pneumatic Slip for oilfield Work Pressure 0.6~0.8 (Mpa) Max.Pressure 1 (Mpa)
Descriptions of API PS 175 Pneumatic Slip for oilfield Work Pressure 0.6~0.8 (Mpa) Max.Pressure 1 (Mpa):
PS Series Pneumatic Slips are pneumatic tools which are suitable for all kinds of rotary tables for hoisting drill pipes and handling casings. They are mechanized operating with strong hosting force and large working range .They are easy to operate and dependable enough .Besides, they can not only reduce the workload but also improve the work efficiency . They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
Specifications:
Model | Rotary talbe size(in) | Applicable Diameter of Tubular | Rated Torque (short tons) | Work Pressure(Mpa) | Max.Pressure(Mpa) |
PS175 | 17 1/2 | 2 3/8-5 3/4 | 150 | 0.6-0.8 | 1 |
PS205 | 20 1/2 | 2 3/8-5 3/4 | 250 | 0.6-0.8 | 1 |
PS275 | 27 1/2 | 2 3/8-9 7/8 | 350 | 0.6-0.8 | 1 |
PS375 | 37 1/2 | 2 3/8-14 | 500 | 0.6-0.8 | 1 |
PS16 | 27 1/2,37 1/2,49 1/2 | 3 1/2-7 3/4 | 500 | 0.6-0.8 | 1 |
PS Portable | 23,27 1/2,37 1/2,49 1/2 Pin Drive | 2 3/8-5 1/2 | 250/350 | 0.6-0.8 | 1 |
PS Slant Hole | For Slant Hole Drilling Rig | 2 7/8-13 3/8 | 250 | 0.6-0.8 | 1 |
PS560 | 560mm Through Hole | 1.9-7 | 350 | 0.6-0.8 | 1 |
![]() |

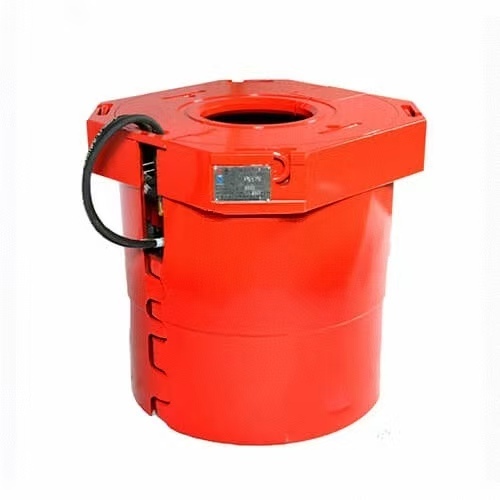

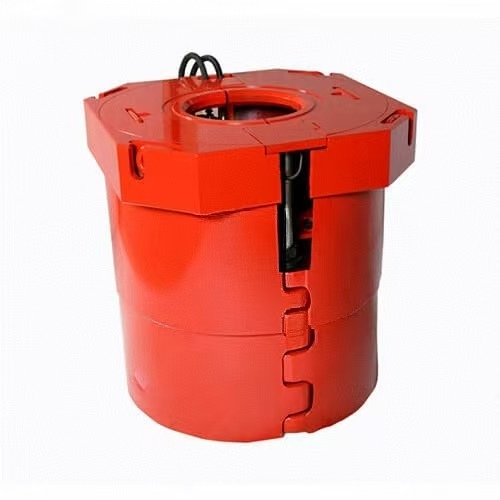

API PS 175 Pneumatic Slip For Oilfield Work Pressure 0.6~0.8 (Mpa) Max.Pressure 1 (Mpa) Images |
